Plastic Injection Mould for Home Use 4K Projector Case/bracket/cover

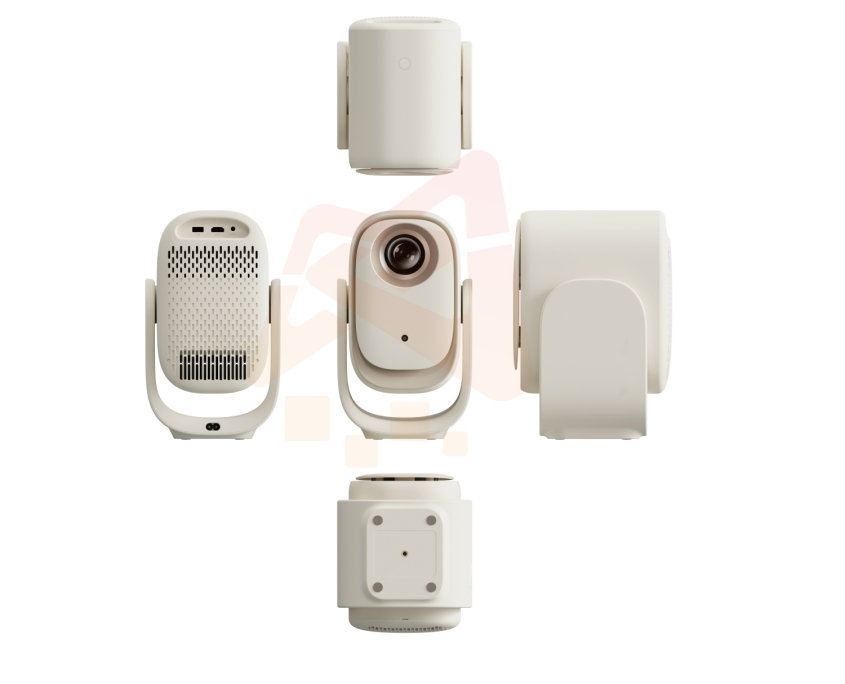

Plastic Injection Mould for home use 4K Laser Projector case and bracket home use
  • Part Name
  • Cavity No.
  • Part Size(mm)
  • Gating
  • Projector Outer Bracket
  • 1
  • 161.8*129.1*191.7
  • 1 Drop YUDO Valve Gate
  • Material
  • Injection Machine
  • Part Weight(g)
  • Steel
  • 70% PC+30% ABS
  • HAITIAN-380T
  • 232.51
  • Core(718H) ;
    Cavity (S136)
  • Part Name
  • Cavity No.
  • Part Size(mm)
  • Gating
  • Projector Inner Bracket
  • 1
  • 155.83*129.09*185.36
  • 1 Drop YUDO Valve Gate
  • Material
  • Injection Machine
  • Part Weight(g)
  • Steel
  • 70% PC+30% ABS
  • HAITIAN-380T
  • 233.64
  • Core(718H) ;
    Cavity (S136)
  • Part Name
  • Cavity No.
  • Part Size(mm)
  • Gating
  • Projector Case
  • 1
  • 135.05*220.19*165.19
  • 1 Drop YUDO Hot Runner to Cold Runner
  • Material
  • Injection Machine
  • Part Weight(g)
  • Steel
  • 70% PC+30% ABS
  • HAITIAN-380T
  • 419.35
  • Core(NAK80) ;
    Cavity (S136)
  • Part Name
  • Cavity No.
  • Part Size(mm)
  • Gating
  • Projector Rear Cover
  • 1
  • 219.05*134.36*41.79

  • 1 Drop YUDO Hot Runner to Cold Runner
  • Material
  • Injection Machine
  • Part Weight(g)
  • Steel
  • 70% PC+30% ABS
  • HAITIAN-380T
  • 106.64
  • Core(718H) ;
    Cavity (S136)
  • Part Name
  • Cavity No.
  • Part Size(mm)
  • Gating
  • Projector Front Cover
  • 1
  • 117.83*180.04*15.54
  • Cold Runner
  • Material
  • Injection Machine
  • Part Weight(g)
  • Steel
  • 70% PC+30% ABS
  • HAITIAN-200T
  • 46.42
  • Core(718H) ;
    Cavity (S136)
  • Part Name
  • Cavity No.
  • Part Size(mm)
  • Gating
  • Projector Case Cover
  • 1
  • 127.5*208.7*12.6
  • Cold Runner Sub-Gate
  • Material
  • Injection Machine
  • Part Weight(g)
  • Steel
  • 70% PC+30% ABS
  • HAITIAN-200T
  • 50.14
  • Core(718H) ;
    Cavity (S136)
  • Part Name
  • Cavity No.
  • Part Size(mm)
  • Gating
  • Projector Circuit Board Bracket
  • 2
  • 103.8*89.9*34
  • Cold Runner Edge-Gate
  • Material
  • Injection Machine
  • Part Weight(g)
  • Steel
  • 70% PC+30% ABS
  • HAITIAN-160T
  • 14.24
  • Core(718H) ;
    Cavity (2343ESR
    )
  • Part Name
  • Cavity No.
  • Part Size(mm)
  • Gating
  • Projector Lens Cover
  • 2
  • 85.16*82.03*26.04
  • Cold Runner Edge-Gate
  • Material
  • Injection Machine
  • Part Weight(g)
  • Steel
  • 70% PC+30% ABS
  • HAITIAN-160T
  • 22.69
  • Core(718H) ;
    Cavity (S136)
